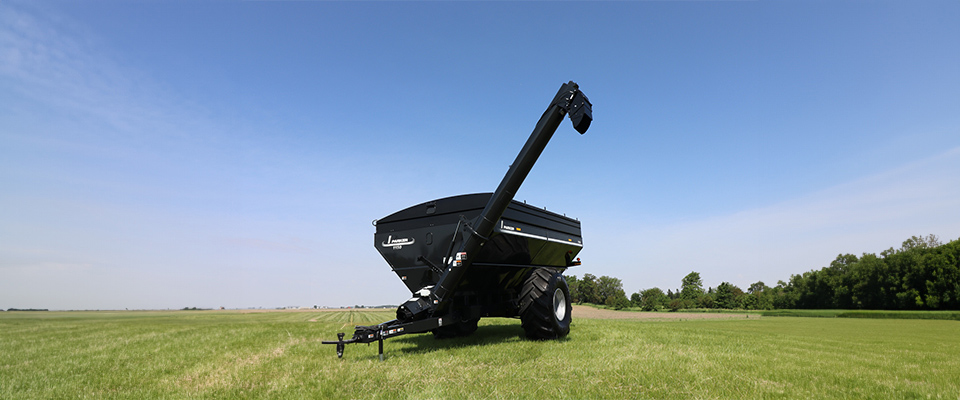

1150 Double-Auger Grain Cart

Original 2250 Cart - B...Parker 1150 close unlo...1150 Close Up Action S...Green 1150 - SideRed 1150 - FrontIndexed and Synchroniz...

Auger & Downspout

• Model 1150 unloads more than 400 bushels per minute, even in high-moisture grain, with the 16" vertical unloading auger and 14" horizontal floor auger.
• The vertical unloading auger features 7' 7" of side reach and up to 15' 1" to ensure easy loading into the center of trucks.
• An optional 2-way hydraulically adjustable downspout increases your maximum side reach and allows the operator to easily position grain.
• Full-length super-edge auger flighting manufactured of high-grade steel with a 5/16" thick edge for longer life.
• Electronic balancing of the upper and lower augers provide longer life and smooth operation at all speeds.
• LED vertical auger spotlight automatically turns on when the auger is unfolded for easier night-time unloading.
• Over-center, mechanical auger lock with a positive seal eliminates grain seepage during unloading.
• The vertical auger alignment is anchored by a 1 3/4" thick drive dog with a top-mounted spring-loaded bearing for smooth and proper engagement.
• The vertical auger's hinged cleanout door featurs tool-free access, which allows for convenient cleanout.
• Hydraulic hoses are color-coded for easy hookup and feature a storage holder for organization.
• The drivetrain features heavy-duty tapered sprockets and a double #80 roller chain drive with a spring-loaded chain tensioner to provide constant tension and maximize chain longevity. Additionally, a standard chain oiler simplifies maintenance, ensuring reliable performance throughout the harvest season.

Side Profile 1150 Blac...1150 Front View Extend...1150 Rear Angle

Tank Design

• Model 1150 features a large carrying capacity of 1,100 bushels to handle the biggest fields and biggest yields.
• The double-auger design allows the tank to have a lower profile and low center of gravity for in-field stability and easy combine unloading.
• The steep floor slopes, graphite-coated interior, and recessed floor auger intake provide quick and complete unloading.
• Standard hydraulic flow-control gates over the horizontal floor auger feature a visible position indicator and allow the operator to meter the grain flow for precise control.
• Easy-to-operate clasps on the hinged floor auger fates allow for complete cleanout between crops.
• Three front shatterproof windows and a rear-mounted hinged viewing ladder provide convenient load checking.
• The exclusive manufacturing process crimps sides for added strength and a sleek appearance and exposed seams are silicone sealed for corrosion resistance.
• Flashing, L.E.D. amber and red taillights with SMV sign and transport chains for safe road transport.
• Durable, high-grade enamel paint is baked on in tractor red, green or metallic gray for a long-lasting and smooth, automotive-like finish.
• Grating over the auger intake prevents debris and foreign objects from entering the auger.

1150 Hitch1150 Wheels36 in Double Bogie Tra...

Undercarriages & Construction

• The Tubular steel mainframe, 12-gauge steel shell, reinforced gusset wheel hub design and special allow, stress-proof spindles contribute to the durability of the grain cart.
• Heavy-duty drop-leg jack for safer storage and standard transport chains for added safety.
• Double #80 chain drive system powers the unloading augers and standard chain oiler with tighteners provides easy maintenance and maximize chain life.
• Quick-couple P.T.O. shaft is shear-bolt protected for quick and easy servicing of the driveline.
• 120" rigid axle with high-flotation single wheels and tires available with a variety of tire size options.

36" Wide Track System

• 36" wide track belt available with 87" ground contact length on the 2-bogie track or 75" of ground contact length on the smaller 2-bogie track
• The 87" ground contact track features 40" main end wheels and 10-bolt hubs while the 75" ground contact track features 32" main end wheels and 8-bolt hubs.
  • Greaseable hubs feature triple-lip seals and a steel guard which prevents the seals from reversing so the operator can purge out any dirt and debris from the hub, maximizing the operational life.
• Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution.
  • Conveniently located PSI gauge allows the operator to easily check pressure, ensuring the proper tension is being applied to the belt.
• Cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and increased belt life.
• Shallow tread belt design provides greater flotation and traction.
• Exclusive rubber belt construction molds the tread, guide lugs and belt together as one piece, which increases durability and eliminates the need for glued-on components.

UHarvest Pro In Cab Fi...UHarvest Pro Function ...UHarvest Pro 4240 Unlo...UHarvest Pro Accu Save...UHarvest Pro 4240 Hitc...UHarvest Pro 4240 Comb...UHarvest Pro 4240 Repo...UHarvest Pro Grain Car...Slingshot ReportUHarvest Moisture Sens...

Your complete ISOBUS grain cart scale and harvest data solution!  By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab.  Simply plug into the ISOBUS port and you’re ready to go!  With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements.  Need to send your data to the cloud?  Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!

Standard Features

• The UHarvest Pro grain cart scale and data management system works on any ISOBUS Virtual Terminal display. The easy-to-use platform permits easy setup and operation directly from a monitor that you already have in the tractor cab.  No need for additional monitors, cabling or batteries!
• The harvest data structure allows you to track each load using a grower, farm and field structure as well as truck, destination and crop variety for complete harvest data reporting.
• Easily add up to 5 custom crop types along with the included crop types. Plus, with UHarvest Pro, you can set up truck and bin capacities to help monitor your harvest production and storage requirements.
• Accu-Save automatically records loads using the proximity sensor mounted on the driveshaft of the grain cart for the most accurate and complete harvest record-keeping possible.
• Hitch weight management feature allows the operator to maintain optimum tractor and cart control by keeping the grain load evenly distributed.  This feature not only monitors grain and total cart weight, it also shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading.
• Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.
• Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system.  Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data.  Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account.
• The free UHarvest Pro mobile app allows you to send your harvest data to Slingshot directly from the field.  Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go.  Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).

Optional Features

• The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded.  After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading.  Each truck weight is matched to the truck name for easier operation.  The operator can then focus on topping off each truck and proper grain placement.
• Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate in harvest record keeping.

Visit uharvest.net for complete information pertaining to the UHarvest Pro grain cart scale and data management system.

UHarvest Pro In Cab Fi...Model 520 ScaleRemote Grain Cart Scal...Hydraulic Drive OptionG3 Automatic Greaser

Scale Packages:

• UHarvest Pro ISOBUS Grain Cart Scale & Data Management Solution
  • Please refer to the UHarvest tab or uharvest.net for more information
• Model 520 Scale Package
  • Features auto-log and the patent-pending start/stop button for ease of use
  • The large, multi-line display features an alpha-numeric keyboard for easily editing or changing fields
  • Combine check button can help calibrate the the combine's yield monitor, accumulation of weights per field entry and the ability to store up to 1 year's worth of harvest data in the monitor's memory
  • Complete with PC software and a 1GB USB flash drive to easily download your harvest information to your computer in Excel or PDF format
• Model 410 Scale Package
  • Scale display specifically designed for ease of use with the patent-pending start/stop button
  • Assign, view and change six-character field information and accumulate weights within a field
  • Optional printer is available for record-keeping
• Remote scale display for the 520 and 410 scale indicators features a 4" x 18" LED screen that can be mounted to the side of the grain cart for easy viewing of the loaded weight of the grain cart

Weatherguard Roll Tarp

• Custom-designed tarps offer the fit, appearance and ease of operation expected on Unverferth equipment
• Heavy-duty, 18 oz. black canvas for a long life
• Semi-trailer locking design for optimum protection from high wind and moisture
• Low-profile tarp bows are reinforced to eliminate sagging
• Entire roll-over operation performed from the ground - no straps required

Hydraulic Drives

• Hydraulic drive system features 55 GPM output for unloading with tractors not equipped with PTO.

Auto-Greaser for Tracked Undercarriage

• Reduce your daily maintenance on track undercarriages by automatically delivering small amounts of grease to each pivoting joint at more frequent intervals
• Powered by an electric pump with a 2-liter grease reservoir and programmable intervals
